All Categories  > Components & Accessories  > Controller Cards  > Network Adapters >  ATTO ThunderLink FC 3162 - network adapter - Thunderbolt 3 - 16Gb Fibre Channel x 2 - TAA Compliant


ATTO

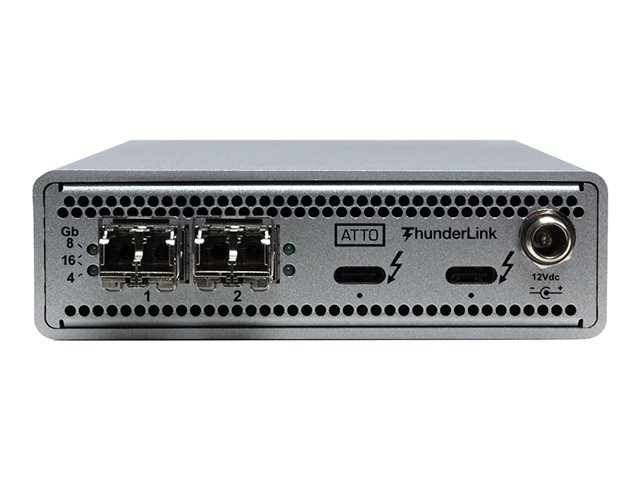

ATTO ThunderLink FC 3162 - network adapter - Thunderbolt 3 - 16Gb Fibre Channel x 2 - TAA Compliant
The ATTO ThunderLink FC 3322 acts as an external Thunderbolt 3 to Fiber Channel adapter, connecting Thunderbolt enabled workbooks and mobile workstations to the latest 32Gb/s Fiber Channel networks and storage devices. With dual channel configurations, the 32Gb/s Fiber Channel ThunderLink is an ideal solution providing support for failover and load balancing through ATTO's exclusive MultiPath Director. With the combined power of Thunderbolt 3 and ATTO's time-tested history with Fiber Channel users can achieve the highest I/O and data throughput for advanced video and access to IT applications.

Sku: GN1161
Price: $3,436.00





Part Number TLFC-3162-L00
SKU GN1161
UNSPSC Code 43201558
Returnable No
Usually Ships Call for Availability .
Billable Weight 2.27   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Manufacturer Warranty 3-year warranty
TAA Compliant Yes
System Requirements Microsoft Windows 7 or later
Power AC 120/230 V (50/60 Hz)
Data Transfer Rate 16 Gbps
Data Link Protocol 16Gb Fibre Channel
Dimensions (WxDxH) 4.1 in x 8.7 in x 1.2 in
Ports 16Gb Fibre Channel x 2
Interface (Bus) Type Thunderbolt 3
Form Factor External
Device Type Network adapter
Product Description ATTO ThunderLink FC 3162 - network adapter - Thunderbolt 3 - 16Gb Fibre Channel x 2 - TAA Compliant

Extended Specifications


General
  Device Type Network adapter
  Form Factor External
  Interface (Bus) Type Thunderbolt 3
Networking
  Ports 16Gb Fibre Channel x 2
  Connectivity Technology Wired
  Data Link Protocol 16Gb Fibre Channel
  Fibre Channel FC-FS, FCP
  Data Transfer Rate 16 Gbps
  Status Indicators Link/activity
  Features 4K resolution support, auto-negotiation, FDMI, load balancing, Virtual Fabric mode
Expansion / Connectivity
  Interfaces 2 x 16Gb Fibre Channel - SFP+ ¦ 2 x Thunderbolt 3
Miscellaneous
  Included Accessories 2 x SFP+ LC transceivers
  Compliant Standards cTUVus, EN 55032 Class A, EN 60825-1, EN 60825-2, EN 60950-1, EN55024, FCC Part 15 B Class A, RoHS 2011/65/EU
  TAA Compliant Yes
Power
  Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
  OS Required Microsoft Windows 7 or later
Dimensions & Weight
  Width 4.1 in
  Depth 8.7 in
  Height 1.2 in
Manufacturer Warranty
  Service & Support Limited warranty - 3 years
Environmental Parameters
  Min Operating Temperature 32 °F
  Max Operating Temperature 104 °F
  Humidity Range Operating 10 - 90% (non-condensing)
